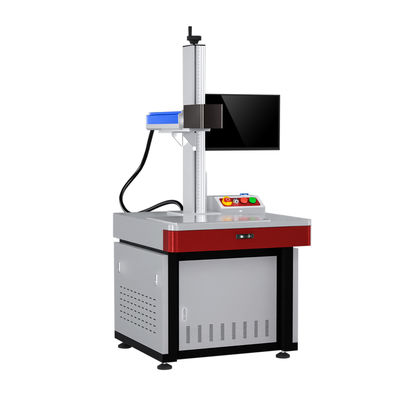

3W / 5W 3D Jewelry Laser Marking Machine For Metal Non Metal Pattern Depth Engraving

Place of Origin: CHINA
Brand Name: JPTECH
Certification: CE/FCC
Product Details
Place of Origin:
CHINA
Brand Name:
JPTECH
Certification:
CE/FCC
Minimum Order Quantity:
1
Standard Packaging:
wood carton
Delivery Time:
5-7 days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
50 sets/month
Specifications
Laser wavelength:
355nm±1nm
After-sales Service:
Online Support, Video Technical Support
After Warranty Service:
Video Technical Support, Online Support
computer:
With The Computer
ambient temperature:
10 To 35 ℃, Humidity Is < 80%
Function:
Metal Glass Crystal Engraving Marking
Power supply:
AC220V +10% / 50HZ
Highlight:

3D Jewelry Laser Marking Machine

,

5W Jewelry Laser Marking Machine

,

3W Jewelry Laser Marking Machine

Product Description

3D Jewelry Gold And Silver Metal Non Metal Laser Marking Machine Three Dimensional Pattern Depth Engraving



Laser wavelength 355nm±1nm
ambient temperature 10 to 35 ℃, humidity is < 80%
storage temperature ‘-10-40℃, humidity <90%
Laser Power 3W /5W
Applicable Material Glass Acrylic Ceramic Plastic Metal
Power supply 220V/50HZ
Single Pulse Energy (uJ) ~100uJ@30kHz/~160uJ@30kHz
Pulse Width (ns) ~15ns@30kHz
Repitition Rate 20-500kHz
Pulse Stability <3% rms
Long Term Stability <±3%
Polarization Ratio Horizontal; >100:1
Beam Diameter Beam Diameter
Beam Circularity Beam Diameter
Beam Circularity >90%
Spatial Mode TEM00, M2 <1.3
Warm-up Time <15 minutes from cold start
Electrical Requirement DC12V,350W
Cooling System Water-Cooled
Water Temperature (laser inlet) 25℃
