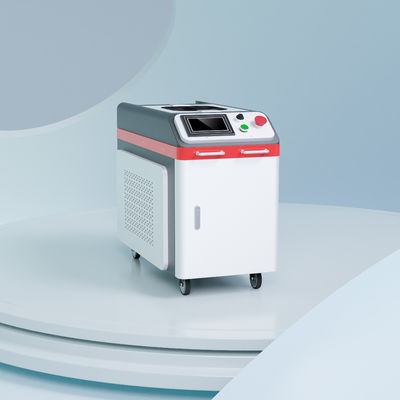

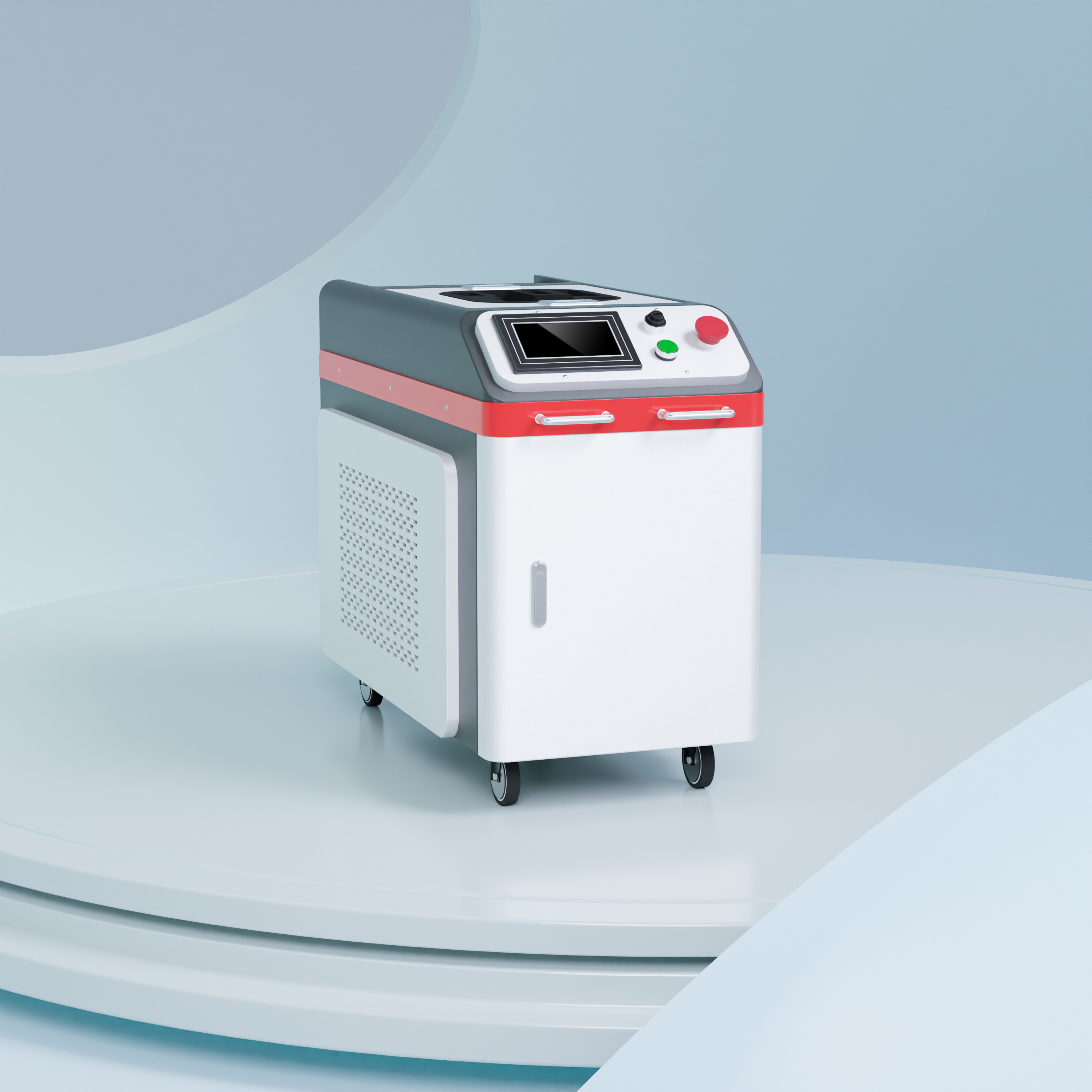

500W 1000W Pulse Laser Cleaning Machine JPT Laser Metal Rust Remover Machine

500W 1000W Pulse Laser Cleaning Machine JPT High Precision Mould Metal Rust Removal Laser Cleaner

I. Product description

       Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning ," green "environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.

The laser cleaning equipment produced by JPTECH is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.

(1)  Equipment characteristics:

• non-contact cleaning without damaging the matrix of the parts.

• accurate cleaning, can achieve precise position, accurate size selective cleaning.

• do not need any chemical cleaning liquid, no consumables, safety and environmental protection.

• simple operation, hand-held or with the manipulator to achieve automatic cleaning.

• ergonomics design, operating labor intensity greatly reduced.

• trolley design, with its own moving wheel, easy to move.

• High cleaning efficiency, save time.

• laser cleaning system is stable with little maintenance.

(2)  Operating environment and related parameters:

(3)  Structure of Cleaning Head:

Overall Dimension:

II. Installation and Application of Laser Cleaning Machine

1) Precautions before use:

• Check whether the appearance of the equipment is abnormal, whether the output cable bending, breakage and other phenomena.

• Please ensure that the electrical outlets are in good contact.

• Check and ensure that the cleaning head protects the lens from dust inside and outside.

• Check and make sure all buttons and switches are in normal condition.

2)  Operation Steps:

1. Take out the hand-held cleaning gun in the chassis, ensure that the button switch on the handle is loosened, and remove the dust cover of the lens at the front of the laser cleaning gun.

2. Take out the external power line to energize, turn on the total power switch, open the key switch.

3. Turn on the start button to power on and initialize the system.

4. After the system is started, set the laser cleaning parameters on the laser cleaning host interface.

5. After laser parameters are set, press the laser enable button on the laser cleaning touch screen (before pressing the button, make sure that the button switch on the handle of the handheld head is loosened).

6. Put on laser protective glasses, aim the head of the gun at the cleaned workpiece, press the switch button on the handle of the finger, and the head of the gun can be cleaned with light (please connect the external control line on the laser cleaning host for automatic use, and switch the laser control through the external control signal).

7. After use, loosen the switch on the cleaning head, turn off the enable button on the laser cleaning touch screen, press the start button, turn off the key switch, pull down the main power switch, cover the dust cover of the playing mirror, insert the cleaning gun back into the host placing box, and unplug the power plug.

III. Pre-sale and after-sales service

1) Service commitments:

    JPTECH adhere to customer-centered, fully understand customer cleaning needs, to provide customers with perfect, personalized installation, commissioning, training, maintenance and other pre-sale and after-sales service.

① Pre-sale services:  Before signing the contract, the company provides customers with various production process plans, provide laser cleaning equipment technical advice, sample samples, equipment selection and other services

② Installation debugging: JPTECH according to the contract, free of charge in the specified time to safely transport the equipment to the user designated installation site, and send technical service engineers on-site installation. In the case of user installation and commissioning spare parts are basically available, the technical service engineer will complete the installation and commissioning of the machine for the user within 2 working days to ensure that the installation and commissioning site environment is neat, clean and orderly.

③ After-sales training:The company provides free technical training, after installation and commissioning, at the buyer's site or the seller's domestic training and maintenance center to the buyer operator technical training, until the operator reaches the basic normal use of the equipment, the main training content is as follows:

Basic Principles of Laser Cleaning Technology:

• Main Structure of Laser Cleaning Equipment

• Operation of laser cleaning equipment

• Adjustment of Laser Cleaning Process Parameters

• Maintenance of laser cleaning equipment

④  After-sales commitment

• Equipment free warranty for one year (excluding human damage, broken fiber)

• Free technical consultation, process and software upgrade services

• Maintenance services provided for life only for spare parts cost

• Lifetime provides a wide range of hardware and software support

2) Limitation of warranty

     Damage to products and their parts (including optical fibers) caused by tampering, opening, removal, misloading and improvement caused by non-my company personnel; or damage caused by misuse, negligence, or accident; or use beyond specifications, abnormal installation and maintenance, damage caused by misuse or non-use in accordance with information and warnings in the user's manual are not covered by warranty. the customer is responsible to understand and follow the user manual and operating instructions on the scope of operation, the damage caused by the wrong operation is not guaranteed. accessories and other parts are not covered by warranty.

     Within the scope of the warranty, if the buyer discovers the problem, it must make a request in writing within 30 days from the date of the discovery of the problem, which does not involve a third party (including the specified buyer, end user or customer), nor does it include parts, equipment or other products produced by non-my company.

3)  Technical Support and Product Maintenance

     This product has no other built-in parts to be maintained by users, so the maintenance of spare parts should be carried out by my company technicians.

 Product in the process of use if any failure should be promptly informed my company technicians, and troubleshooting.

     All repair and replacement products must be placed in the original packing box provided by my company, otherwise any product damage caused by this, my company will have the right not to repair free of charge.

    When the user you receive my company products, please timely check whether the product is intact, accessories are complete, if there is any abnormal situation, please contact the carrier and my company in time.

    My company will continuously develop new products. the product information listed in the manual may change without prior notice. All technical parameters shall be subject to the terms of the contract.

   The warranty and service terms of the products are for user's reference only. The official service and warranty contents are subject to the contract.
