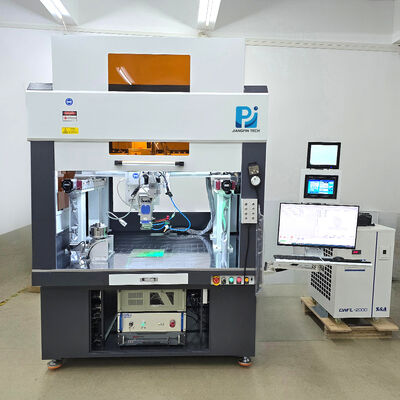

1500W Blue-IR Hybrid Laser Welding Machine for Copper & High-Reflective Metals
| Place of Origin | CHINA |
|---|---|
| Brand Name | JP |
| Certification | CE/FDA |
| Minimum Order Quantity | 1 |
| Delivery Time | 5-8days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10 sets of a month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 1500W laser welding machine for copper,blue-IR hybrid laser welder,high-reflective metals laser welding machine |
||
|---|---|---|---|
Product Description
Headline: Why Choose Blue-IR Hybrid Laser for Copper?
1.The Science: Pure Infrared (IR) lasers often fail on copper because copper reflects ~95% of IR energy. This leads to unstable welding and massive spatter.
2.The Solution: Our machine uses a "Blue Light Guide" approach. The 450nm Blue Laser is absorbed rapidly by copper (60%+ absorptionrate), creating a "keyhole" for the IR laser to penetrate effortlessly.
1. Revolutionizing Copper Welding with Blue-IR Hybrid Technology
EN: Combines 450nm blue diode laser with 1064nm fiber laser. The blue light preheats the copper to increase absorption by 10x compared to pure IR lasers, allowing the infrared beam to weld deeply with minimal energy loss. Perfect for high-reflective metals like copper, gold, and aluminum.
EN: Combines 450nm blue diode laser with 1064nm fiber laser. The blue light preheats the copper to increase absorption by 10x compared to pure IR lasers, allowing the infrared beam to weld deeply with minimal energy loss. Perfect for high-reflective metals like copper, gold, and aluminum.
2. Zero Spatter & Superior Surface Finish
EN: Solves the industry-wide headache of "spatter" in copper welding. The stable molten pool created by the composite beam ensures a smooth, porosity-free weld seam. No post-weld grinding or polishing needed—saving you 30% in labor costs.
EN: Solves the industry-wide headache of "spatter" in copper welding. The stable molten pool created by the composite beam ensures a smooth, porosity-free weld seam. No post-weld grinding or polishing needed—saving you 30% in labor costs.
3. High-Speed Precision for Battery & Electronics
EN: Ideal for EV battery busbars, electronic connectors, and medical device assembly. Achieves welding speeds up to 500mm/s with minimal heat-affected zones (HAZ), protecting sensitive surrounding components from thermal damage.
EN: Ideal for EV battery busbars, electronic connectors, and medical device assembly. Achieves welding speeds up to 500mm/s with minimal heat-affected zones (HAZ), protecting sensitive surrounding components from thermal damage.
4. Industrial-Grade Reliability & Support

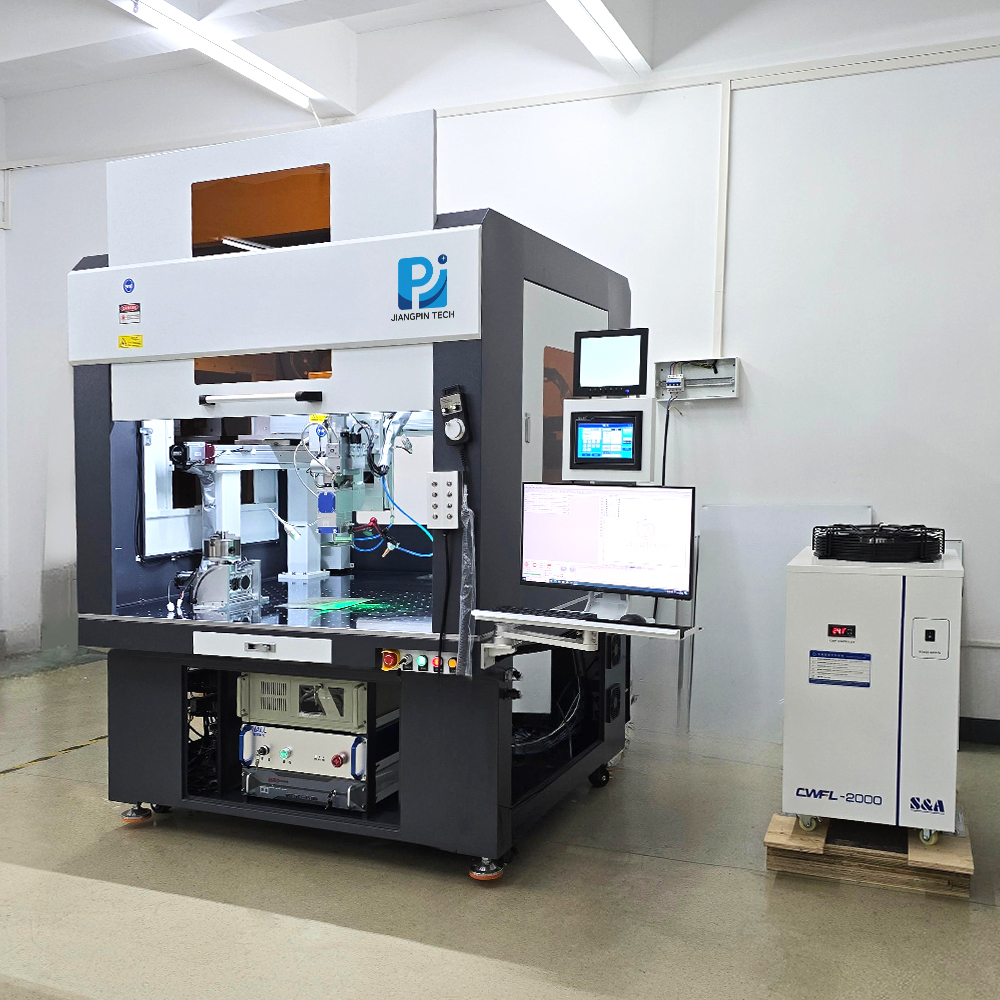

EN: Equipped with a heavy-duty water chiller and trusted laser sources (e.g., Raycus/JPT/BWT). We offer a 1-year warranty and technical support for parameter setting guidance.
EN: Equipped with a heavy-duty water chiller and trusted laser sources (e.g., Raycus/JPT/BWT). We offer a 1-year warranty and technical support for parameter setting guidance.
