JPT Huaray Maiman UV Laser Marking Machine 3W 5W 10W 20W 30W For Glass Plastic Leather Rubber
| Place of Origin | CHINA |
|---|---|
| Brand Name | JPTECH |
| Certification | CE |
| Model Number | JPL-UM3-30 |
| Minimum Order Quantity | 1 |
| Packaging Details | wood carton |
| Delivery Time | 5-8 days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 50 sets/month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Laser Power | 3W 5W 10W 20W 30W | Laser Type | UV Laser |
|---|---|---|---|
| Working Accuracy | 0.01mm | Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Key Selling Points | Easy To Operate | Warranty | 2 Years |
| Highlight | UV Laser Marking Machine 3W,UV Laser Marking Machine 5W |
||
Product Description
JPT Huaray Maiman UV Laser Marking Machine 3W 5W 10W 20W 30W For Glass Plastic Leather Rubber
UV laser marking machine have 3w, 5w, 10w, 20w, can get the perfect effect, the mark is clear. Main used to the Flexible pcb board marking; Microhole and blind hole processing of silicon wafer; LCD liquid crystal glass two-dimensional code marking, glass utensils surface punching, metal surface coating marking, plastic keys, electronic components, gifts, communication equipment, building materials and so on.
| Laser power | 3W 5W 10W 20W 30W |
| Laser Power output | > 7W |
| Laser Wavelength | 355nm |
| Marking speed | 400 characters per second |
| Pulse duration | <16 ns |
| Laser beam quality M2 | <1.2 |
| Pump Source | Single Lamp |
| Frequency | 10-200KHZ |
| Marking Area | 110x110mm |
| Mini. character size | 0.1mm |
| Repetition Accuracy | ±0.003mm |
| Control program | Control program |
| Supply voltage | AC110V 60HZ or AC220V 50HZ |
| Cooling type | Water Cooling |
| Graphic format supported | Jpg,Bmp,dxf,plt |

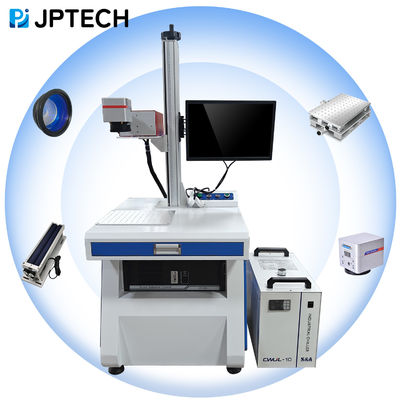

Main part of UV laser marking machine
laser resource:JPT Gainlaser source, The universal 3-10W water-cooled UV laser can obtain the high beam quality and stable output of 355nm UV laser with output power exceeding 10W by using the optimized laser resonator.
High Field Lens:Special lens,facula transmfssivity highfocus more flexible,suitable for all kindsof size products morking requirements.
JCZ control board, popular & Stable: Popular brand in the world, easy to operate, comes with many languages, different kinds of functions. It can meet customers’ different needs.
Water chiloler S&A:Water cooling, protect laser soruce, make sure the machine work stable.
Sino-Galvo Galvo: Good operation stability, high positioning accuracy, marking speed, strong anti-interference ability, comprehensive performance indicators reach the technical level of the same type of products at home and abroad.
sample display
JPT Huaray Maiman UV Laser Marking Machine 3W 5W 10W 20W 30W For Glass Plastic Leather Rubber especially suitable for the high-end market of ultra-fine processing, marking the surface of packaging bottles of cosmetics, medicines, videos and other polymer materials, the effect is fine, and the marks are clean and firm, which is better than inkjet coding and pollution-free. Marking and scribing of flexible pcb boards. Silicon wafer micro-hole, blind hole processing. Among them, 80% of the data cables and adapters on the market are marked by UV laser marking.
