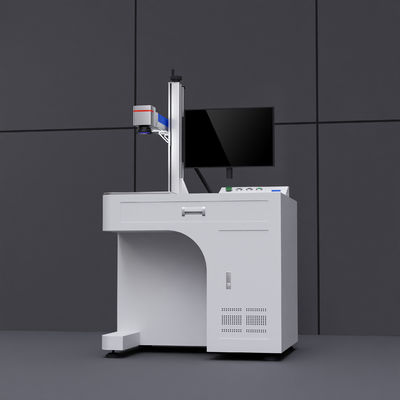

20W 30W 50W 100W 200W Fiber Laser Marking Machine JPT Laser Engraving Metal Machine
| Place of Origin | China |
|---|---|
| Brand Name | JPTECH |
| Certification | CE、FDA、RoHS |
| Model Number | JPL-FM20-200 |
| Minimum Order Quantity | 1 |
| Packaging Details | wood carton |
| Delivery Time | 7-10 days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 15sets/week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | Max/Raycus/JPT | Laser Power | 20W 30W 50W 60W 100W 200W Optional |
|---|---|---|---|
| Laser Source Lifespan | 10000hours | Laser Wavelength | 1064nm |
| Repeat Frequency | 20khz-100khz | Marking Speed | ≤10000mm/s |
| Highlight | 20W Fiber Laser Marker,200W Laser Engraving Metal Machine,JPT Laser Engraving Metal Machine |
||
Product Description
20W 30W 50W 100W 200W Fiber Laser Marking Machine JPT Laser Engraving Metal Aluminum Copper Machine
This is a laser marking machine very suitable for home and office use. Light weight, only 20Kg, easy to carry. It has all the functions of a marking machine, such as jewelry marking, toy marking, water cup marking, pen marking, etc. The power of the whole machine is less than 400 watts, and both 110V and 220V can be used. The biggest advantage of the portable fiber laser marking machine is its simple operation. It only takes 30 minutes to learn to use it.
features of fiber laser marking machine for metal
- This fiber laser marking machine has a service life of 100,000 hours without any consumables,and laser marking is a permanent mark that will not disappear over time.
- The structure of the fiber laser marking machine includes: galvanometer, laser, control card, power supply, etc., with high precision and fast marking speed.
- Support vector graphics in DXF, PLT, AI and other formats. Software can also be developed according to requirements.
- Support serial number, TCPIP, variable text, date, time and other functions..
- The depth of marking can be set freely according to requirements.
- Non-contact processing, so there is no need to clamp the product.
- The fiber laser marking machine can be designed with a rotating device to mark LOGO, letters and numbers on gold, silver, and brass rings and bracelets. The mark size can be customized according to your needs.
- This one is light, compact, easy to carry, powerful, and can be used in home office. It can be used on the table without taking up space, which can save you a lot of freight.
- Fiber laser marking machine can also mark stainless steel, aluminum, plastic, such as bird rings, animal ear tags, nameplates, etc.
Specification of workbench fiber laser marking machine
| Application | Laser Marking |
| Working Accuracy | 0.01MM |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, LAS, DXP |
| Laser Type | Fiber Laser |
| Cooling Mode | Air Cooling |
| Laser Source Brand | JPT/RAYCUS/MAX |
| Warranty | 1 year |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
| Marking Area | 100mm*100mm-300mm*300mm, 100*100mm-300*300mm(Option) |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Core Components | Laser |
| Mode of Operation | Pulsed |
| Working voltage | 0.5KW/AC220V/50Hz(option) |
| Minimum character | 0.1mm |
| Minimum line width | 0.01mm |
| Repeatability accuracy | 0.003mm |
| Resolution | 0.001mm |
| Marking speed | 0-7000mm/s |
application and sample
Applicable Industries:
- Apparatus and Meter: Panel signs, rating label, precision equipment, water meter, electric meter etc..
- Instrument: Panel board, nameplates, medical instruments, precision equipment etc..
- Hardware Tools: Knives, tools, measuring tools, cutting tools, scissors, caliper etc..
- Automobile Parts: Shock absorber, pistons, piston rings, gears, shafts, bearings, clutch, lights, buttons acing parts etc..
- Electronic Components: Resistors, capacitors, chips, printed circuit boards, computer keyboard etc..
- Mechanical Parts: Bearings, gears, standard parts, motor etc..
- Daily Necessities: Handcrafts, zipper, key holder, sanitary wares, kitchen wares, souvenir etc..
- Jewelry & Accessories: Rings, pendant, bracelet, necklace, sunglasses, watches etc..
- Other: Lamp, pen, bird ring, dog tag, pipe etc..
sample display
fiber laser marking machine configuration
LASER SOURCE: Our fiber laser source collection delivers top-tier performance and reliability to meet all your precision processing needs. With options for Raycus, JPT, or MAX fiber laser sources, you will achieve unparalleled cutting and engraving quality. Renowned for its excellent beam quality and high efficiency, the Raycus laser source stands out; JPT offers adjustable pulse widths and high peak power; while MAX is known for its compact design and cost-effectiveness. Whether for precision industrial manufacturing or creative design work, our products provide the optimal solution to ensure the success of your projects.
GALVO SCANNER:The Sino-Galvo Scanner Head stands out in the laser industry for its exceptional performance and precision. Its high-accuracy galvanometer mirror system can precisely position the laser beam in a very short time, making it suitable for complex marking tasks. The Sino-Galvo is compact in design and robust in construction, ensuring stable operation over long periods and low maintenance costs. Whether it's for detailed engraving or rapid large-area marking, the Sino-Galvo Scanner Head delivers consistently high-quality results, making it an ideal choice for various industrial-grade applications.
F-Theta Lens:Our F-Theta lens is precision-engineered to provide uniform focusing and scanning capabilities across a range from 110×110 mm to 300×300 mm. Designed specifically for high-precision laser systems, it ensures a constant focal length and exceptional image quality across the entire scanning plane. Whether for detailed material processing or rapid industrial marking, our F-Theta lens offers unmatched accuracy and efficiency, enhancing the performance of your laser system.
CONTROL CARD:it is seamlessly integrated with EZCAD software, renowned for its user-friendly interface and powerful features. Designed for precision control in laser marking, engraving, and cutting systems, this card ensures smooth operation and compatibility with a wide range of laser types and power outputs. The EZCAD software provides intuitive design and layout tools, enabling complex task programming with ease. Ideal for both novice and professional users, this control card is the key to unlocking efficiency and creativity in your laser processing projects.
