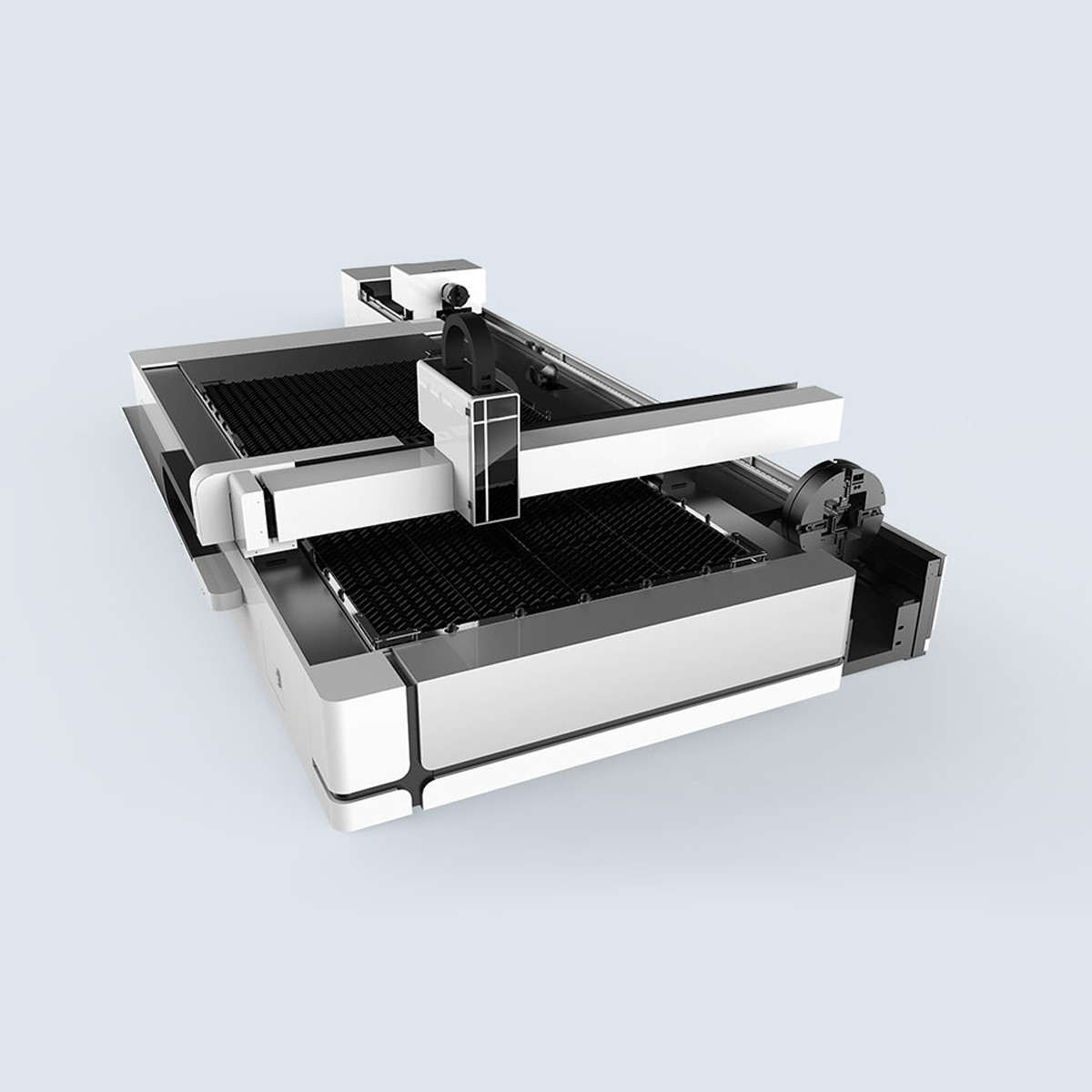

MAX Raycus IPG Fiber Laser Pipe Cutting Machine 6000W Laser Metal Sheet Cutter

MAX Raycus 6000W Fiber Laser Cutting Machine Customized Size And Power Laser Pipe Metal Sheet Cutter

I. Features of 6000W laser cutting machine

1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.
2. Configure with Taiwan Lapping linear rail for all axis, to ensure durable and high precision for long time processing.
3. X, Y axis configure with high accuracy grinding type gear rack, high precision reducer, high speed and precision can be ensured,Z axis are transmitting by high accuracy rolling ball screw.
4. Adopt AC servo system for all axis, larger power, close-cycle control, high precision positioning, strongertorque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development,built-in process, ensure high-quality cutting effect.
6. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise,higher efficiency and better processing quality can be ensured.
7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressuredetection, more simple to use.
8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.

9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

II. Parameters of fiber laser cutting machine

III. Main Parts

	Machine Structure   The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing
	Taiwan Lapping Linear Rail   The machine adopts the best linear rail from Taiwan. The usage lifespan and the product quality definitely can be ensured.
	AC Servo System The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.
	CYPCUT Control System The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head.
	Hanli chiller Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, Hanli has become a leding enterprise in the domestic industrial refrigeration industry.
	Raycus Laser Source Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)
	Servo Reducer High precision Servo Reducer with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.
	Raytool Fiber Laser Cutting Head Our fiber laser machine  install the Raytool NO:1 manual focus cutting head, The machine also can optional the NC30 automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.
	Oil Lubrication System This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

IV. Application &Sample

1. Widely used in cutting stainless steel,carbon steel, manganese steel, spring steel, titanium alloy, galvanized sheet, aluminum, plate, brass, copper and other metal plate material.
2. Used for metal round, square tube, such as carbon steel, manganese steel, spring steel, stainless steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper.
3. Ultra-high type, special metal material cutting.

V. Our Packaging

Packaging Improving:

Three layers---
-The machine all covers will be protected by the foam board
-The middle layer is wrapped with environmental protection material ;
-And the outermost layer is wrapped with PE stretch film.

About the package of fiber laser machine:

-Normally, the size of fiber laser machine no more than 1325 (1300*2500mm) will be packaged with wooden case. Before that, the machine parts( cutting head, laser source, control cabinet) will be put on the machine bed except for the chiller, the machine will be protected by the foam board of the four corners and wrapped with the film before shipping.

-Fiber laser machines of which the size is over 1530(1500*3000mm) cannot be packaged plywood case because the width of the machine exceeds the container’s. The machine will be fix on the pallet.

-Fiber laser machine 1530 size(1500*3000mm) with enclosed cover and exchange table need to be shipped with 20 feet frame rack and the 20 feet container.if the size is bigger, the packaging and the shipping way needs to be confirmed.

VI.Our Service

Pre-Sales Service:

1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.

After-Sales Service:

1. Training how to instal the machine, training how to use the machine online.
2. Engineers available to clients' factory for training.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.

We know for enterprises, quality is the life, so we have put the quality control into each link as products development, design, purchasing, processing, assembling and testing etc. Everybody in the company are participated into the quality management to prevent any unqualified products from being sent out before delivery, each machine has been inspected through following steps:

1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and electrical performing before delivery;

2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;

3.We always pursue the service philosophy of "ALL FOR CUSTOMERS". The Advanced management system and perfect service system ensure that we can provide timely and efficient services and ensure product's stability in great extent, which supply a effective guarantee for the system normal operation.
