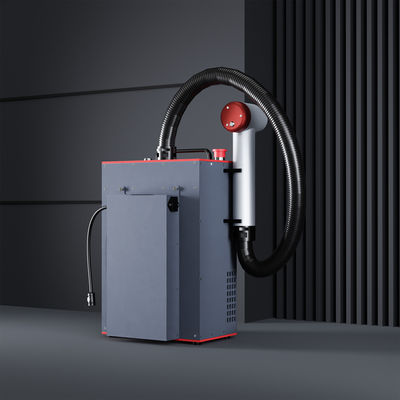

Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal
| Place of Origin | China |
|---|---|
| Brand Name | JPTECH |
| Certification | CE、RoHS、EN 60825-1、FDA、UL、ISO 3834 |
| Model Number | JPL-EFH200SC |
| Minimum Order Quantity | 1 |
| Packaging Details | wood carton |
| Delivery Time | 5-8 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 50 sets/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Source | JPT; MAX | Laser Power | 200W Pulse Energy |
|---|---|---|---|
| Cleaning Width | ＞2000mm | Cleaning Speed | 0-5㎡/h |
| Application | Rust Paint Oil Oxide Removal | Warranty | 12 Months |
| Highlight | Portable Pulse Laser Cleaning Machine,Pulse Laser Cleaning Machine 200W,Backpack Laser Cleaning Machine Rust Removal |
||
Product Description
JPL-EFH200SC Portable Backpack Pulse Laser Cleaning Machine 200W Laser Clean Metal Rust Wood Oil Paint
whats is the laser cleaning?
Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning ," green "environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.
The laser cleaning equipment produced by JPTECH is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.
Equipment characteristics and implementation standards
1) Equipment characteristics
-
non-contact cleaning without damaging the matrix of the parts
-
accurate cleaning, can achieve precise position, accurate size selective cleaning
-
do not need any chemical cleaning liquid, no consumables, safety and environmental protection
-
simple operation, hand-held or with the manipulator to achieve automatic cleaning
-
ergonomics design, operating labor intensity greatly reduced
-
trolley design, with its own moving wheel, easy to move
-
High cleaning efficiency, save time
-
laser cleaning system is stable with little maintenance
2) Product implementation standards
JPTECH has passed the ISO 9001 international quality management system certification, the formation of medium and small power laser processing equipment design, production and service quality assurance system. and also sets detailed standards for the working environment and working conditions, basic technical requirements, cooling requirements, laser radiation safety, electrical safety, test methods, inspection and acceptance, packaging and transportation, etc.
The national standards cited in this standard are:
- GB10320: Electrical safety of laser equipment and facilities
- GB7247: Radiation Safety, Equipment Classification, Requirements and User Guide for Laser Products
- GB2421: Basic Environmental Test Procedures for Electronic Products
- GB/TB360: Specification for Laser Power Energy Testing Instruments
- GB/T13740: Test Method of Laser Radiation Dispersion Angle
- GB/T13741: Method for measuring laser beam diameter
- GB/T13862-92: Laser Radiation Power Test Method
- GB2828-2829-87: Batch-by-cycle inspection of counting sampling procedures and sampling tables
Operating environment and related parameters
|
Operating environment |
|
|
Content |
JPL-EFH200SC |
|
Supply voltage |
Standard AC220V±10%, 50/60Hz power adapter (output DC48V) |
|
Optional single battery, 200W continuous work 80min |
|
|
Power consumption |
≤800W |
|
Working environment temperature |
5℃～40℃ |
|
Working environment humidity |
≤80% |
|
Optical parameters |
|
|
Average laser power |
≥200W |
|
Power instability |
＜5% |
|
Laser Working Mode |
Pulse |
|
Pulse width |
13-500ns |
|
Maximum monopulse energy |
2mJ |
|
Power regulation range(%) |
0-100( Gradient Adjustable) |
|
Repeat frequency(kHz) |
1-3000(Gradient Adjustable) |
|
Fiber length |
1.5m |
|
Cooling mode |
Air cooling |
|
Cleaning Head Parameters |
|
|
Scan range (length * width) |
0mm~145mm, continuously adjustable; Biaxial supporting 8 scanning modes |
|
Field mirror focal length(mm) |
160mm( Optional 210mm/254mm/330mm/420mm) |
|
Depth of focus |
About 5 mm |
|
Mechanical parameters |
|
|
Machine size(Length, width and height) |
About 268mm*135mm*445mm(Do not contain batteries) |
|
About 268mm*191.5mm*445mm(Contain the battery) |
|
|
Machine Weight |
About 12.5Kg(Do not contain batteries) |
|
About 17Kg(Contain the battery) |
|
|
Cleaning head weight |
＜0.75Kg |
|
Mode of operation |
Wireless control screen |
Product structure

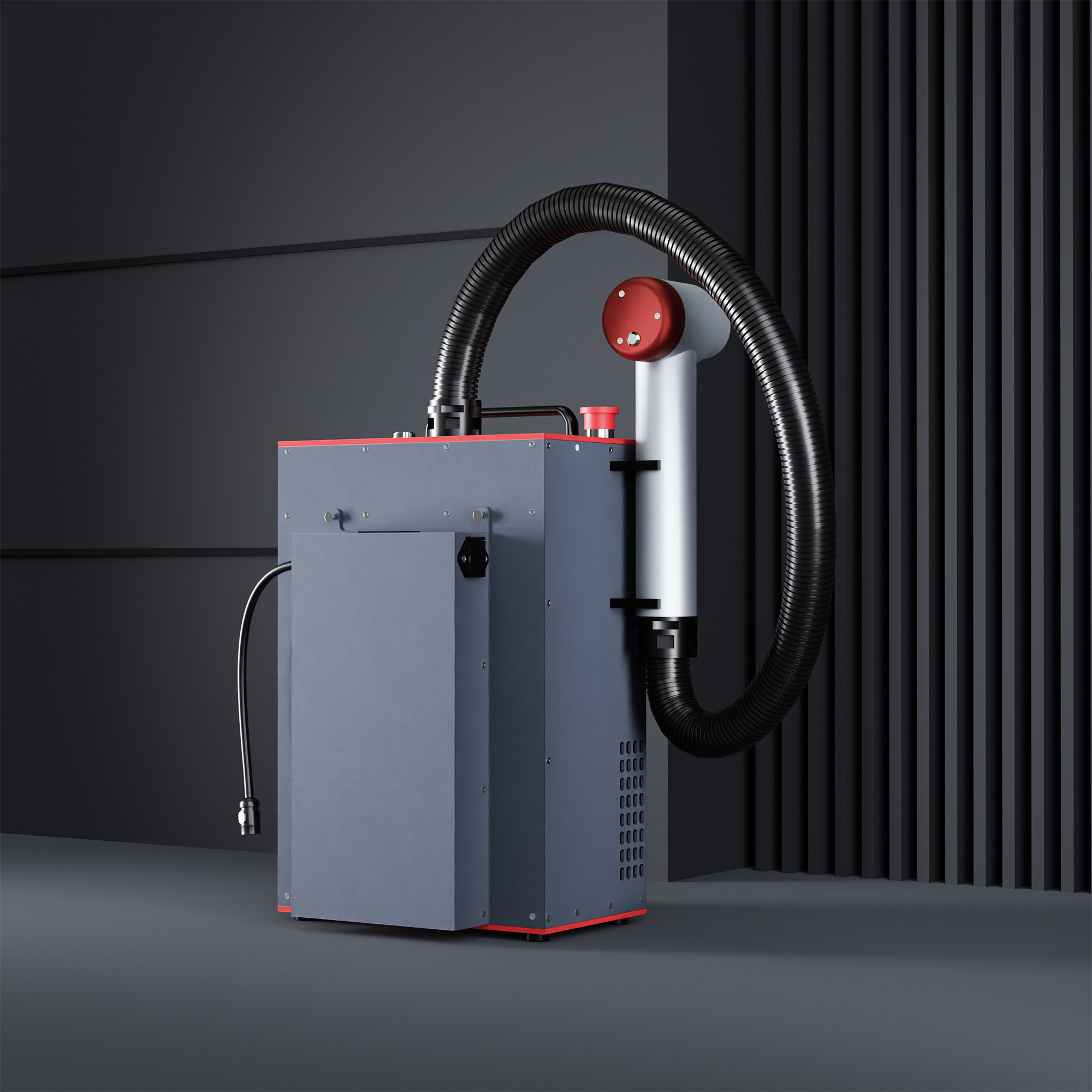

1) laser cleaning machine appearance
2)Structure of Cleaning Head
3) Overall Dimension
Configuration list
|
Name of name |
Model specifications |
Units |
Quantity |
Remarks |
|
Laser cleaning mainframe |
JPL-EFH200SC |
Table |
1 |
|
|
Laser cleaning head |
GY-QCDXY200P |
Sets |
1 |
|
|
Process database |
Built-in |
Sets |
1 |
|
|
Laser protective glasses |
SD-3 |
Payment |
1 |
|
|
protect the lens |
43*2 |
Pcs |
5 |
|
|
Lens cleaning kit |
|
Pcs |
10 |
|
|
Special 220V power adapter |
GY-DC48500 |
Sets |
1 |
|
|
Wireless control panel |
GY-43W |
Sets |
1 |
|
|
Control screen lithium battery charger |
DC12V0.3A |
Sets |
1 |
|
|
Dedicated lithium battery module |
48V20Ah |
Sets |
1 |
Optional |
|
Dedicated lithium battery charger |
GY-DC5405 |
Sets |
1 |
Optional |
Installation and Application of Laser Cleaning Machine
1) Precautions before use:
- Check whether the appearance of the equipment is abnormal, whether the output cable bending, breakage and other phenomena.
-
Please ensure that the electrical outlets are in good contact
-
Check and ensure that the cleaning head protects the lens from dust inside and outside
-
Check and make sure all buttons and switches are in normal condition
2) Operation Steps
-
Take out the hand-held cleaning gun in the chassis, ensure that the button switch on the handle is loosened, and remove the dust cover of the lens at the front of the laser cleaning gun
-
Take out the external power line to energize, turn on the total power switch, open the key switch
-
Turn on the start button to power on and initialize the system
-
After the system is started, set the laser cleaning parameters on the laser cleaning host interface
-
After laser parameters are set, press the laser enable button on the laser cleaning touch screen (before pressing the button, make sure that the button switch on the handle of the handheld head is loosened).
-
Put on laser protective glasses, aim the head of the gun at the cleaned workpiece, press the switch button on the handle of the finger, and the head of the gun can be cleaned with light (please connect the external control line on the laser cleaning host for automatic use, and switch the laser control through the external control signal)
-
After use, loosen the switch on the cleaning head, turn off the enable button on the laser cleaning touch screen, press the start button, turn off the key switch, pull down the main power switch, cover the dust cover of the playing mirror, insert the cleaning gun back into the host placing box, and unplug the power plug
